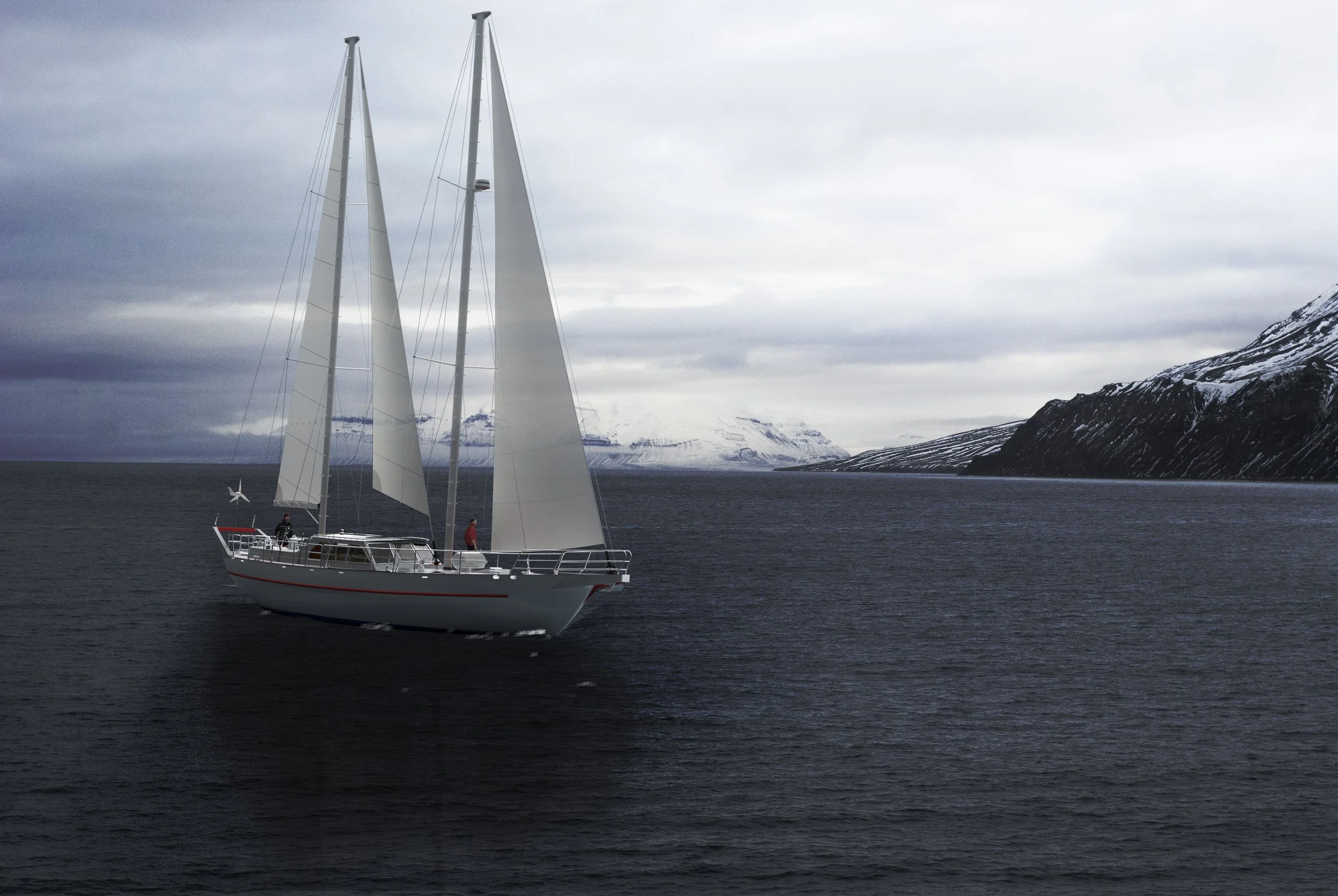

45’ exploration yacht Inny (The Other)

Basic Data

  • ISO category A

  • Loa: 15,00m

  • Lwl: 12,20m

  • Beam: 4,40m

  • Draft: 2,00/1,10m

  • Displacement: 24160kg

  • Sail Area: 110m²

  • Crew: 10

  • Rig: schooner

appendages

198kW Engine, Thurster, 2446L Fuel tank, 1384L Water tank, Wind generator, Rudder on skeg



The design of the 45’ yacht INNY (the Other) was done for a private client in Poland. The project is based on an existing design by Borghegn Yachtdesign (original name S/Y MYJOY). The old design has been in most extenses adjusted to the needs of the client with a purpose of sailing long distances in high latitudes.

Provided services:

  • Measurments and 3d modeling of the existing hull with appendages

  • Redesign of the cabin

  • Engine and thurster system design

  • Deck design

  • Bowsprit and railing design

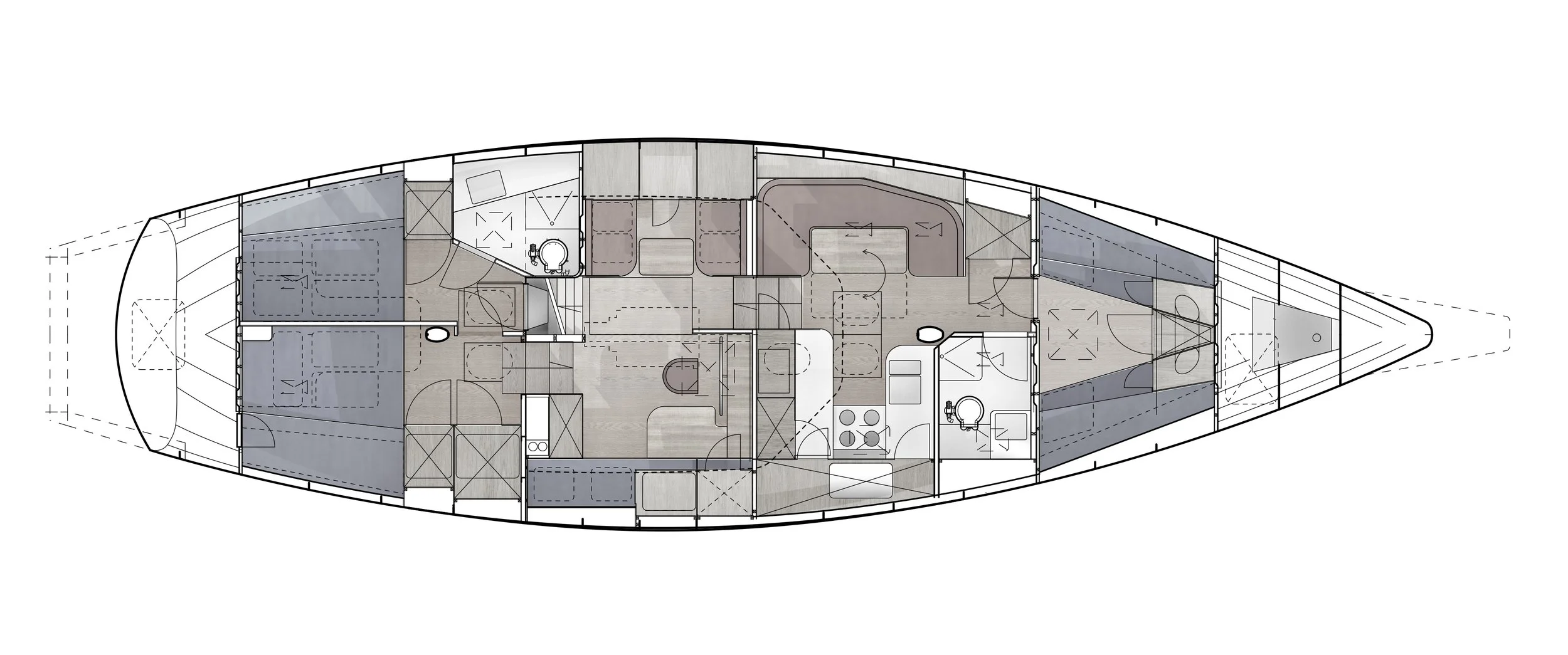

  • Design of interior layout

  • Complete rig design

  • Certification process

  • Mechanical systems

new elements to the original hull

transport of the hull*

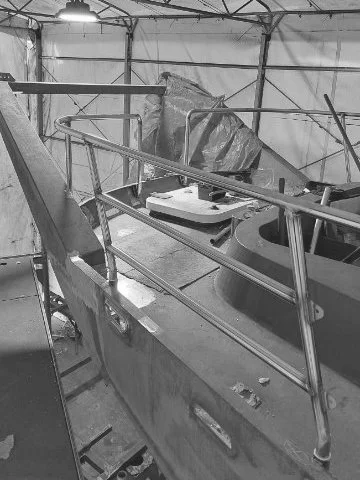

new railing*

new bowsprit*

structural elements

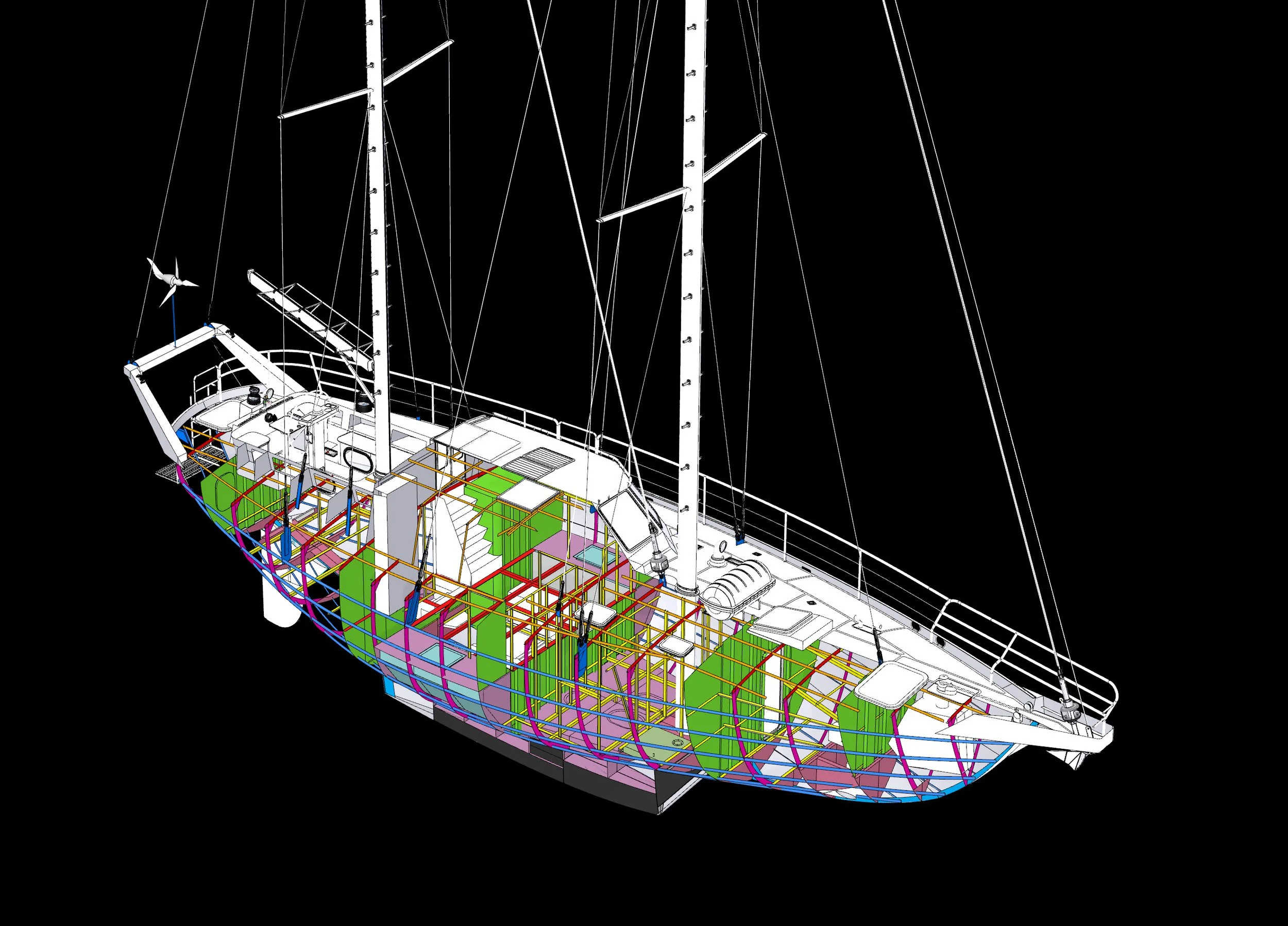

internal structure

*Photos from the construction process by the courtesy of the client: Paweł Styczeń, blikkstille@hotmail.no
